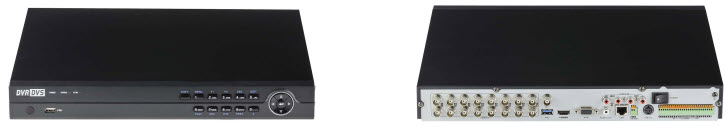

8MP High Definition 24 Camera
Digital and Network Video Recorder
Up to 24 Channel (16 CH analog+8 Channel IP) Pentaplex Hybrid
DVR system, P2P, 4K Video Out,
2xSATA (up to 12TB HDD) + Cloud Storage
*NOTE: HPI uses Model#AR326-XX which is the OEM equivalent to the Hikvision DVR model#DS-72XXHUHI-K2
Click here for User Manuals for HPI (AR326) Hikvision DVR model#DS-72XXHUHI-K2
FEATURES
- H.265+/H.265/H.264+/H.264 Video Compression
- Support HDCVI, HDTVI, AHD, and Analog Cameras with adaptive access
- 8-Ch, 6 MP IP cameras input, 16CH. up to 6MP Enhanced IP Mode, 16-Ch 8MP TVI Input (with the latest firmware–max 24 IP channel)
- Full Channel@1080P resolution real-time recording
- HDMI output up to 4K
- Long transmission distance over coax cable
- Support up to 16 Ch. synchronous playback
SPECIFICATIONS
| Video compression | H.264 / H.264+ /H.265 / H.265+ |
| Analog, AHD, HD-TVI and HD-CVI video input | 16 Ch., BNC interface (1.0Vp-p, 75Ω) |
| HDTVI Input | 8MP, 3 MP, 1080p, 720p |
| AHD Input | 1080p, 720p |
| HDCVI Input | 1080p, 720p |
| CVBS Input | PAL/NTSC |
| IP Video Input | 8CH, Up to 6MP Resolution (Max 24 ch exclusive IP mode)/ Supports H.265+/H.265/H.264+/H.264 IP cameras |
| Audio compression | G.711u |
| Audio input | 4-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Video Output | 1 HDMI, 1 VGA, 1 CVBS |
| CVBS Output | PAL/NTSC |
| VGA output | 1920×1080@60Hz, 1280×1024@60Hz, 1280×720@60Hz, 1024×768@60Hz |
| HDMI output | 4K(3840 x 2160)@30Hz, 2K(2560 x 1440)@30Hz, 1920×1080@60Hz, 1280×1024@60Hz, 1280×720@60Hz, 1024×768@60Hz |
| Encoding resolution | Up to 8MP @ 8fps for HD-TVI, and up to 6MP @ 20fps for IP camera. |
| Frame rate | Up to 8fps @ 8MP TVI, and 20fps @ 6MP IP camera |
| Video bitrate | 32 Kbps to 10 Mbps |
| Audio output | 1 Ch., RCA (Linear, 1KΩ) |
| Audio bitrate | 64 Kbps |
| Dual-stream | Support |
| Stream type | Video, Video & Audio |
| Synchronous playback | 16 Ch. |
| Alarm I/O | 16/4 |
| Remote connections | 128 Streams |
| Network protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| VCA Functions | Face Detection, Line Crossing, Area Intrusion. Up to 2 Channels Max. |
| SATA | 2 SATA interface |
| Capacity | Up to 12TB capacity |
| Network interface | 1; 10M / 100M / 1000M self-adaptive Ethernet interface |
| Serial interface | 1 x RS-485 serial interface |
| USB port | 1 × USB2.0, 1 x USB3.0 |
| Power supply | 12 VDC |
| Consumption (without hard disks) | ≤ 25W |
| Working temperature | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF) |
| Working humidity | 10% ~ 90% |
| Dimensions | 380 × 320 × 48 mm (15 x 12.6 x 1.9 inch) |
| Weight (without hard disks) | 4.4 lb |
